IF-THEN Fun: How to Build Your Own Daily Robot Schedule using “Production System in AI” Rules

Have you ever wondered how robots make decisions step by step — like when to clean, charge, or even greet you? The answer lies in a powerful concept called the production system in AI. 🤖💡 This system works much like your daily planner, but for machines! It helps artificial intelligence follow logical rules — the same way we follow routines and habits.

In this fun and practical guide, we’ll explore how production systems work, how you can use them to design your own robot’s daily schedule, and why they’re essential to modern artificial intelligence.

Understanding the Production System in AI

At its core, a production system in AI is a model used to represent and automate decision-making processes. It’s based on a set of rules — usually written as IF-THEN statements — that tell the system what to do when certain conditions are met.

For example:

• IF the robot detects dirt on the floor, THEN it activates the vacuum function.
• IF the battery is below 20%, THEN it returns to the charging station.

These rules are called production rules, and together they form a logical framework that drives AI decision-making.

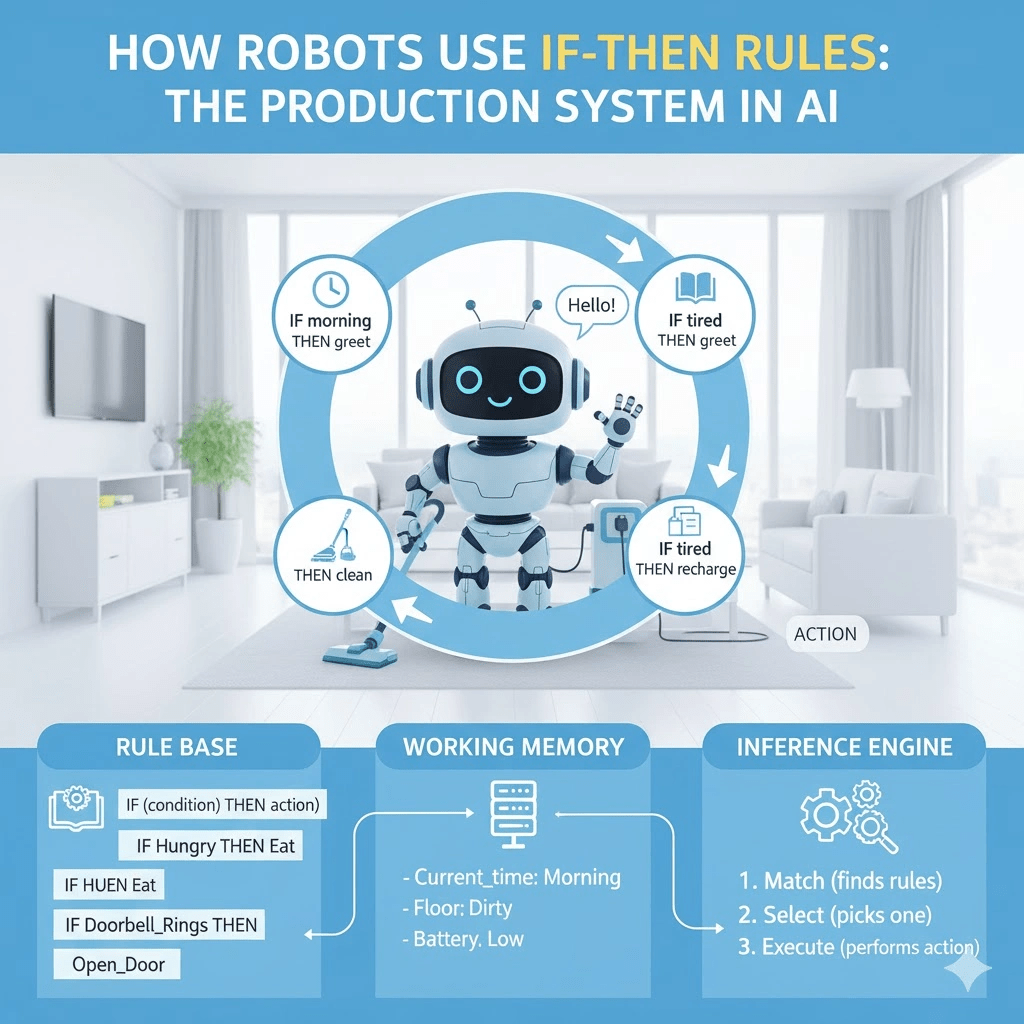

Key Components of a Production System

Component	Description	Example
Rule Base	Stores all the IF-THEN rules that define system behavior.	IF hungry THEN eat lunch
Working Memory	Contains current data or facts known to the system.	Time = 12:00 PM, Hunger = TRUE
Inference Engine	Applies rules from the rule base to working memory to decide actions.	Matches condition and triggers eating action

This simple framework is the backbone of intelligent behavior in systems like expert systems, chatbots, and even home robots.

Why Production Systems Matter in Artificial Intelligence 🧠

Production systems provide structured reasoning. Instead of hardcoding every single possibility, they use general rules that can adapt to changing inputs. That’s what makes them so effective in knowledge-based systems.

Benefits of Production Systems:

• Simplicity: Easy to define and modify using IF-THEN rules.
• Flexibility: Can add or remove rules without rewriting the entire system.
• Transparency: Humans can understand and audit decisions made by the system.
• Scalability: New knowledge can be added incrementally.

These advantages make production systems ideal for creating robots that can make decisions autonomously, whether it’s a toy robot or a warehouse automation system.

Building a Robot’s Daily Routine using IF-THEN Logic ⚙️

Let’s imagine you want to create a robot that assists you with daily household tasks. You can design its production system in AI to follow a simple routine.

Step 1: Define Goals and Actions

List out what you want your robot to achieve in a day:

• Wake up (activate) at a certain time.
• Clean the floor.
• Water the plants.
• Charge itself.
• Greet you when you enter the room.

Step 2: Create IF-THEN Rules

Each action can be represented by a rule:

• IF time = 8:00 AM THEN say “Good morning!” ☀️
• IF floor is dirty THEN start cleaning 🧹
• IF soil moisture < 30% THEN water plants 🌱
• IF battery < 20% THEN go to charging dock ⚡

Step 3: Store Rules in the Rule Base

You can use a simple programming format like Python dictionaries or XML files to store your production rules.

rules = [
    {"if": "time == '08:00'", "then": "greet_user()"},
    {"if": "floor_dirty == True", "then": "start_cleaning()"},
    {"if": "battery < 20", "then": "return_to_dock()"}
]

Your inference engine will check the robot’s current data and activate the correct rule accordingly.

Real-Life Examples of Production Systems in AI

Production systems are used across various domains to solve complex problems:

Application	Example	How it Uses Production Systems
Home Automation	Smart assistants like Alexa or Google Home	Use IF-THEN rules to control devices (e.g., IF motion detected THEN turn on lights).
Healthcare	Expert systems for diagnosis	IF symptoms match THEN suggest possible diseases (NIH).
Finance	Fraud detection systems	IF transaction pattern abnormal THEN flag for review.
Gaming	NPC (non-player character) behavior	IF player attacks THEN defend or flee.

Production systems make these AI systems act logically and predictably.

Advantages of Using IF-THEN Logic for Robots

Building a robot with a production system in AI has multiple advantages:

• 🧩 Modular Design: You can easily modify one rule without affecting others.
• ⚡ Fast Decision-Making: The inference engine processes rules in real time.
• 🤖 Adaptability: The robot can react to new situations by adding new rules.
• 💬 Explainable AI: Every decision can be traced back to a clear rule.

These properties make production systems one of the oldest yet most effective AI frameworks in existence.

How the Inference Engine Works 🔄

The inference engine is the heart of any production system. It decides which rule to apply when multiple conditions are true.

There are two main reasoning approaches:

1. Forward Chaining (Data-Driven)

Starts from known facts and applies rules to generate new facts until a goal is reached.

• Example: IF temperature = high THEN turn on fan.

2. Backward Chaining (Goal-Driven)

Starts from a goal and works backward to see which rules lead to that outcome.

• Example: Want to cool the room? → Check if temperature is high → THEN turn on fan.

These reasoning strategies are used in expert systems and rule-based engines like CLIPS and Drools.

Designing a Simple Robot Schedule – Example Table

Time	Condition	Action
7:00 AM	Battery > 80%	Start routine
8:00 AM	Detect human presence	Greet user
9:00 AM	Floor dirty	Start cleaning
12:00 PM	Battery < 20%	Return to charge
6:00 PM	Soil dry	Water plants

This schedule can be implemented using simple IF-THEN rules within a production system framework.

Why Production Systems Are the Core of Expert AI

Even with the rise of neural networks and deep learning, rule-based systems like the production system in AI remain crucial. They form the backbone of explainable AI, especially in areas where decisions must be transparent — like medicine, law, and finance.

According to IBM Research, hybrid AI that combines rule-based reasoning with machine learning achieves both accuracy and interpretability, offering the best of both worlds.

How to Experiment at Home 🎮

You can simulate a production system on your computer using:

• Python libraries: experta, pyknow (for rule-based AI)
• Game platforms: Use Minecraft or Roblox scripting for interactive robot logic.
• Arduino/IoT projects: Build a small robot that follows IF-THEN rules for sensors and motors.

This hands-on approach helps you understand how logic turns into behavior.

Future of Production Systems in AI

Modern AI research is reviving production systems by integrating them with machine learning and natural language processing (NLP). Hybrid systems allow AI to:

• Learn new rules from data automatically.
• Explain decisions to humans clearly.
• Combine logic with pattern recognition.

This evolution means future robots and AI assistants will not just learn from you — they’ll also reason with you.

Conclusion 🎯

Creating your own robot schedule using a production system in AI is a fun and educational way to explore how machines think. It shows how simple IF-THEN logic can build complex, adaptive systems. Whether it’s turning on the lights or managing a full day’s routine, these systems power the intelligence behind every smart assistant and robot.

So go ahead — code your IFs and THENs, and watch your digital buddy follow your lead! 🤖💬

---

FAQs about Production System in AI

1. What is a production system in AI?

A production system in AI is a rule-based framework that uses IF-THEN statements to make logical decisions and automate reasoning.

2. What are the main components of a production system?

The main components include the rule base, working memory, and inference engine — all working together to process facts and apply rules.

3. Where are production systems used in real life?

They’re used in expert systems, robotics, home automation, finance, and healthcare for logical decision-making.

4. What is the difference between forward and backward chaining?

Forward chaining starts from facts and moves toward conclusions, while backward chaining starts from goals and works backward to find supporting facts.

5. Why are production systems still relevant today?

Because they provide transparency, explainability, and structured reasoning — features that modern AI still struggles to achieve fully.
